Industrial Equipment

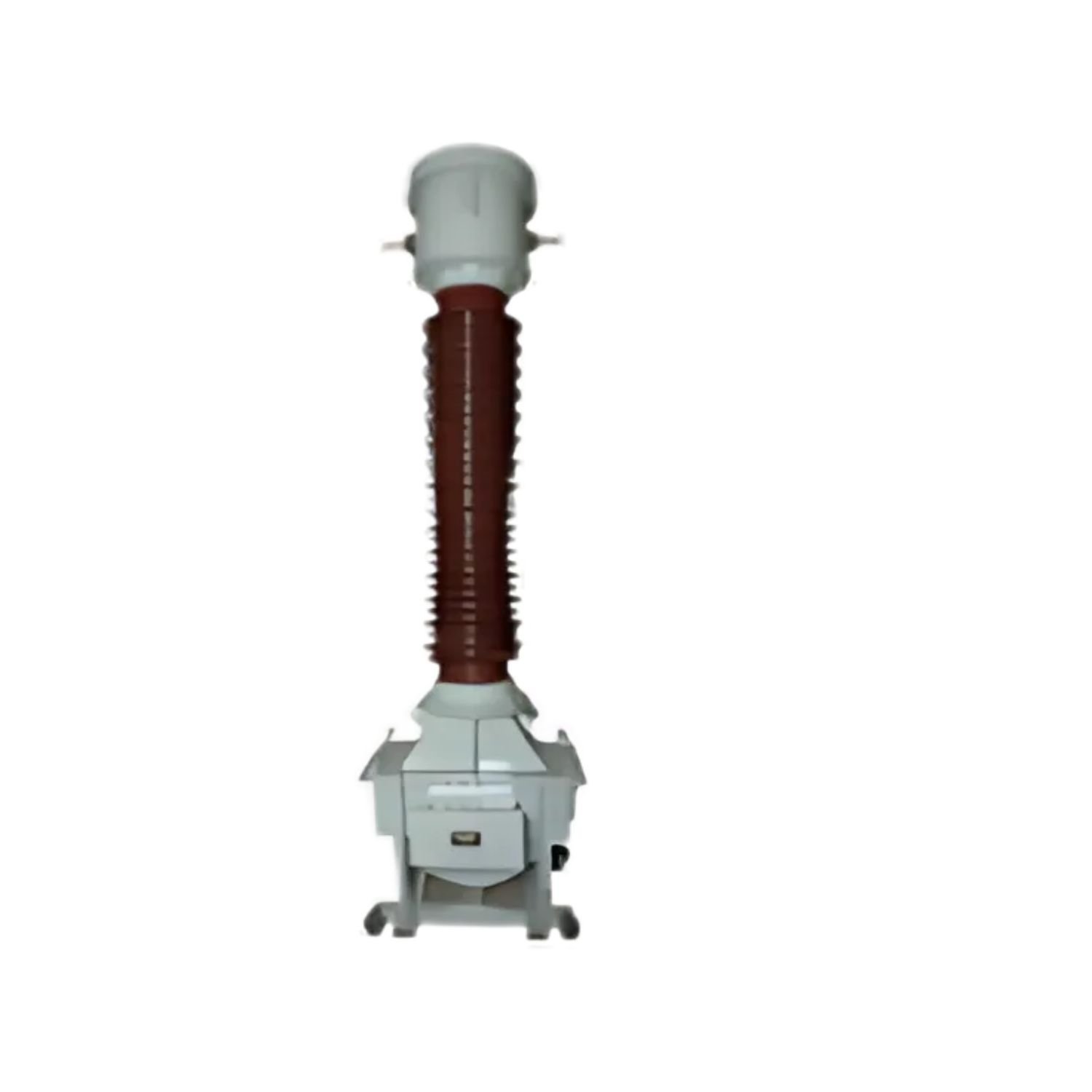

Current Transformer
A Current Transformer (CT) is an instrument transformer designed to reduce high primary currents to a lower, measurable value for metering, protection, and control systems. It ensures accurate current scaling while isolating measuring instruments from high-voltage circuits.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Applicable Standards | IEC, NEMA |
| Range | 72.5kV to 800kV |
| Frequency | 50/60HZ |
| Rated Current | Upto 5000A |
| Secondary Current | 0.577 or 1 or 5 |
| STR kA/ sec | 63/1 or 40/3 |
| Insulation Medium | Resin-cast, oil-filled, or SF6 gas-insulated |
| Operating Temperature | (-40°C to +70°C) |
| Standards | Conforms to IEC 61869-2, ANSI C57.13, and IS |
