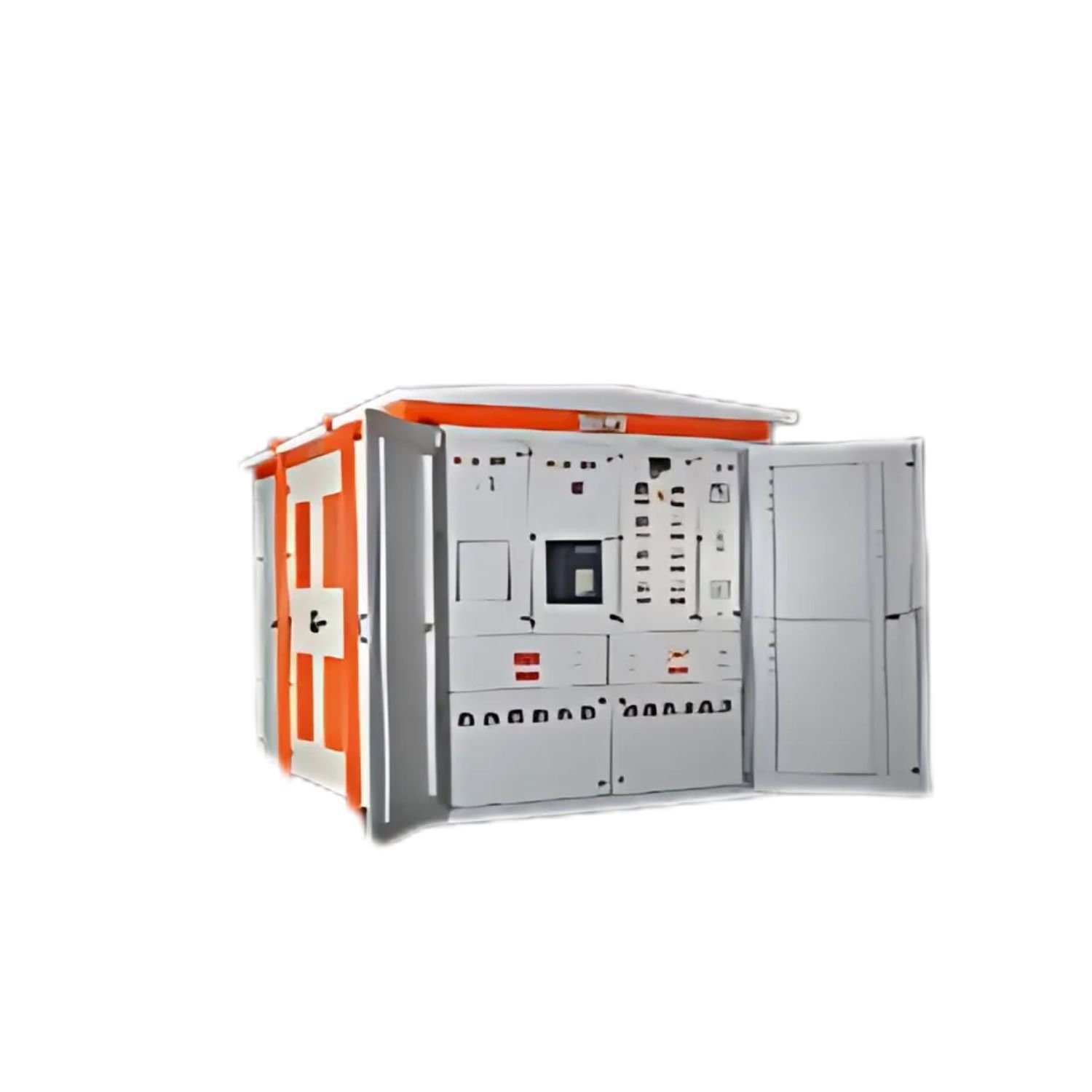

Compact Sub Station
A Compact Substation (CSS) is a prefabricated, modular electrical system designed to distribute power efficiently in areas with space constraints. It integrates HV switchgear, transformer, and LV switchboard in a single, enclosed unit for safer and reliable power distribution.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Rated Voltage | Upto 33kV |
| Rated Current | Upto 630A |
| Frequency | 50/60 Hz |
| LV Current withstand | Upto 65kA |
| Impulse withstand Current | upto 25kA for 1 sec |
| Max LV Current | 3200 A |
| Transformer Capacity | 100 kVA to 2500 kVA |
| Enclosure Material | Mild Steel, Stainless Steel, or Aluminium with anti-corrosion coating |
| Cooling System | ONAN (Oil Natural Air Natural) or AN (Air Natural) cooling options |
| Cable Entry Options | Top and Bottom |
| Installation Type | Indoor or Outdoor |
| Standards | IEC 62271-202, IS 14786, and IEC 60076 |
