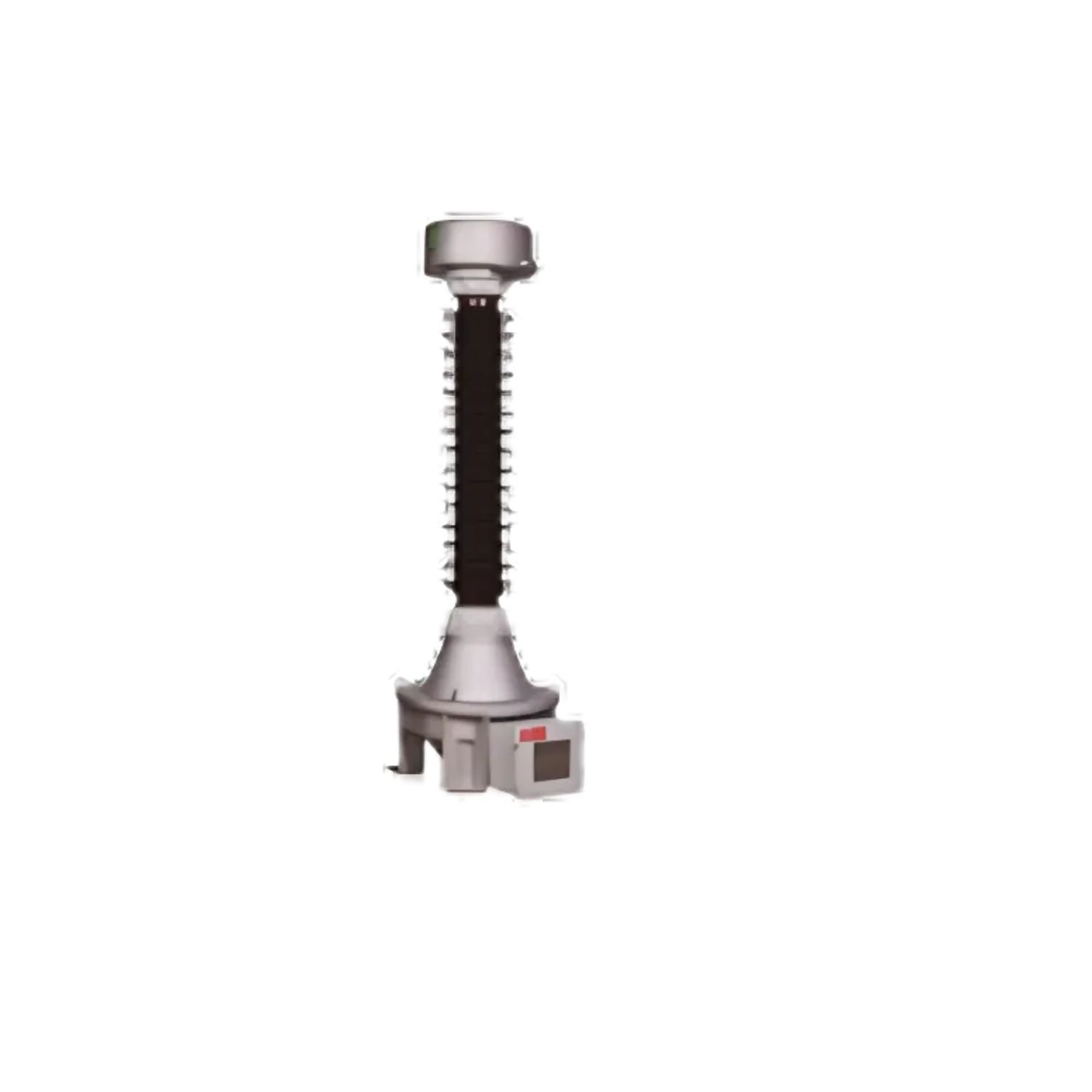

Inductive Voltage Transformer
An Inductive Voltage Transformer (IVT) is an electromagnetic device designed to step down high voltage levels to safer, measurable values for protection, metering, and control applications in power systems. It operates on the principle of electromagnetic induction.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Applicable Standards | IEC, NEMA |
| Range | 36kV to 420kV |
| Frequency | 50/60HZ |
| Burden Class | 500VA/0.5 or 300VA/0.2 |
| Secondary Voltage | 100, 100√3, 110, 110√3, 120, 120√3 |
| Insulation Level (kV/ kVp) | 460/1050 and 850 |
| Insulation Medium | Oil-filled, SF6 gas-insulated, or resin-cast insulation |
| Operating Temperature | (-40°C to +70°C) |
| Standards | Conforms to IEC 61869-3, ANSI C93.1, and IS standards |
