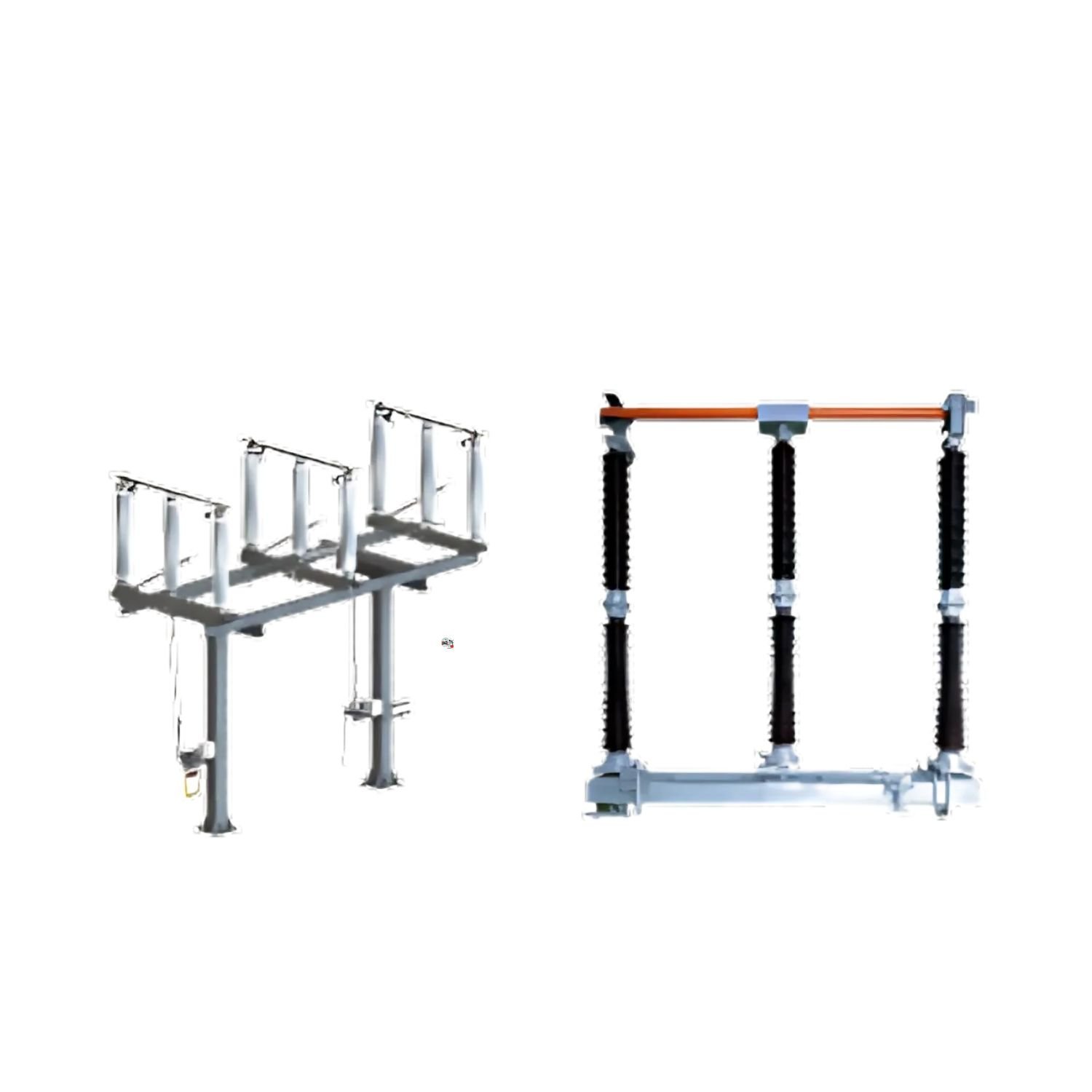

Disconnector Switch
A Disconnector Switch, also known as an Isolator Switch, is a mechanical switch designed to fully isolate an electrical circuit from its power source. It is primarily used in power distribution and transmission systems to ensure maintenance safety by providing a visible break in the circuit.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Type | Centre Break Disconnector, Double Break Disconnector, Horizontal, Vertical, Pantograph |
| Range | 72.5kV to 420kV |
| Rated Current | Upto 4000A |
| Lighting Impulse Withstand voltage 1.2/50ms (To earth- kVp) | 325 to 1425 kV |
| Lighting Impulse Withstand voltage 1.2/50ms (Across Isolating distance- kVp) | 375 to 1665 kV |
| Operating Mechanism | Manual, motorized, or geared drive for remote operation |
| Insulation Medium | Air-insulated, gas-insulated (GIS), or vacuum-insulated |
| Pole Configuration | Single-Pole, Double-Pole, or Triple-Pole |
| Interlocking System | Ensures safe switching with integrated locking mechanisms |
| Earthing Switch Option | Available for added grounding protection during maintenance |
| Standards | Conforms to IEC 62271, ANSI, and IS standards |
