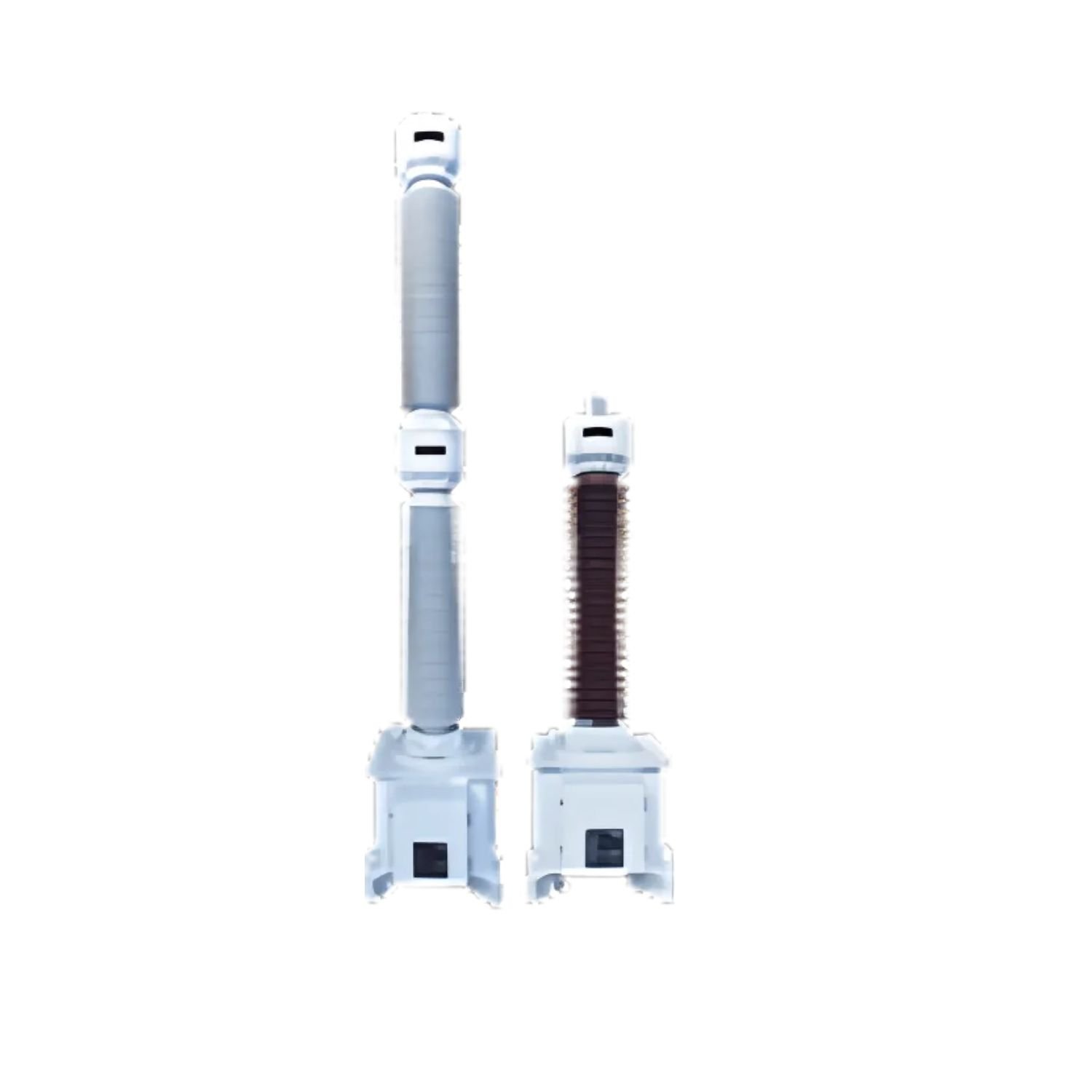

Capacitive Voltage Transformer
A Capacitive Voltage Transformer (CVT) is a specialized electrical device used to step down high voltage signals to manageable levels for metering, protection, and control in power transmission systems. It employs capacitive voltage dividers to achieve precise voltage scaling.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Applicable Standards | IEC, NEMA |
| Range | 72.5kV to 1200kV |
| Frequency | 50/60HZ |
| Rated Voltage Factor | 1.2 (Cont)/ 1.5 (30 Sec) |
| Secondary Voltage | 100, 100√3, 110, 110√3, 120, 120√3 |
| Creepage Distance (mm/kV) | 31.35 |
| Insulation Medium | Oil-filled, gas-filled (SF6), or composite insulation |
| Operating Temperature | (-40°C to +70°C) |
| Standards | Conforms to IEC, IEEE, IS Standards |
