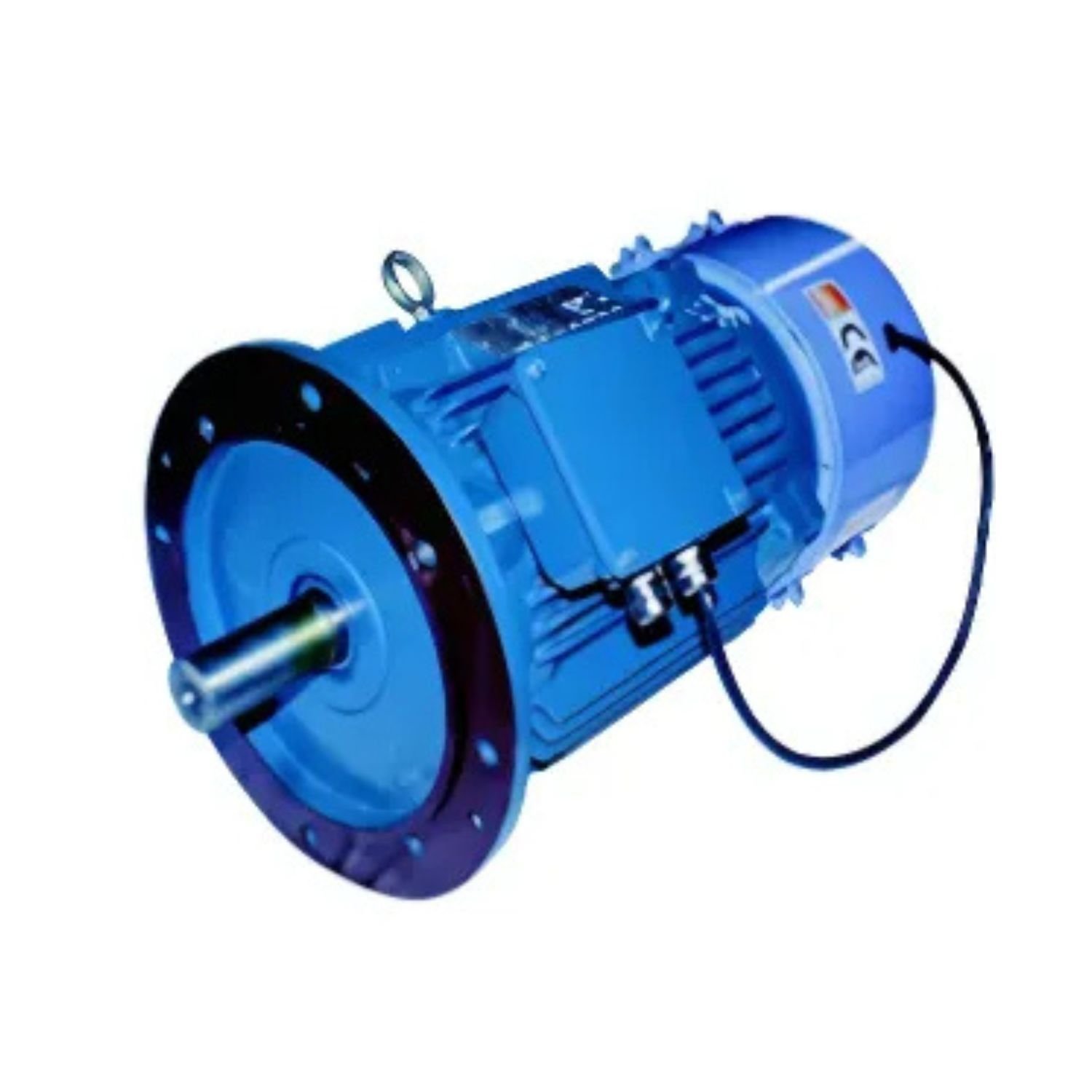

Crane Duty Motor
Crane Duty Motors are specially designed for applications involving frequent starts, stops, and reversals. These motors deliver high starting torque, robust performance, and excellent heat dissipation, making them ideal for cranes, hoists, lifts, and material handling equipment. Engineered for demanding operations, they ensure reliability under heavy mechanical stress.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Ratings/ Power | 0.37kW to 700kW | |
| voltage | 240V, 380V, 400V, 415V, 690V, Dual Voltage, Triple Voltage | |
| Polarity | 2,4,6,8,10,12,14, Dual speed | |
| Frequency | 50Hz, 60Hz | |
| Efficiency | IE2, IE3, IE4, IE5 | |
| Type | Squirrel Cage, Slip Ring motor, Smart Motors, IoT motors | |
| Enclosure | TEFC , SPDP | |
| IP Protection | IP23, IP55, IP56, IP65, IP66 | |
| Insulation Class | Class F, H | |
| Mounting | Horizontal (B3, B5, B14, B7, B8, B35, B34) Vertical (V1, V5, V6, V18, V19) | |
| Area Classification | Safe Area, Flame Proof (Exd, Exde), Increased Safety (Exeb), Pressurised (Exp), Dust Proof | |
| Hazardous zones | Hazardous Gas Zone-1, Zone-2,Category-2, Category-3, Ex II 2G, , EX II 3G, | Hazardous Dust Zone21, Zone-22, Ex II 2D, Ex II 3D |
| Hazardous Groups | IIA, IIB, IIC | IIIA, IIIB, IIIC |
| Certifications | BIS, ISI, PESO, CCOE, NEMA, IECEx, ATEX, UL, FM | |
| Starting Method | DOL, VFD, Star Delta, Soft Starter, Star Delta | |
| Application | Roller table motors, Textile motors, Crusher motors, High Torque motors, Aluminium body motors, Cast Iron motors, Smoke Extraction motors, HVAC motors, Railway motors, Crane duty motor, Slipring Crane Duty Motor, Brake Motor, Vibro motor | |
| Duty | S1, S2,S3,S4,S5,S6 | |
| Standards | IEC/ EN60034, IS12615, NEMA, IEC60079 |
