Industrial Equipment

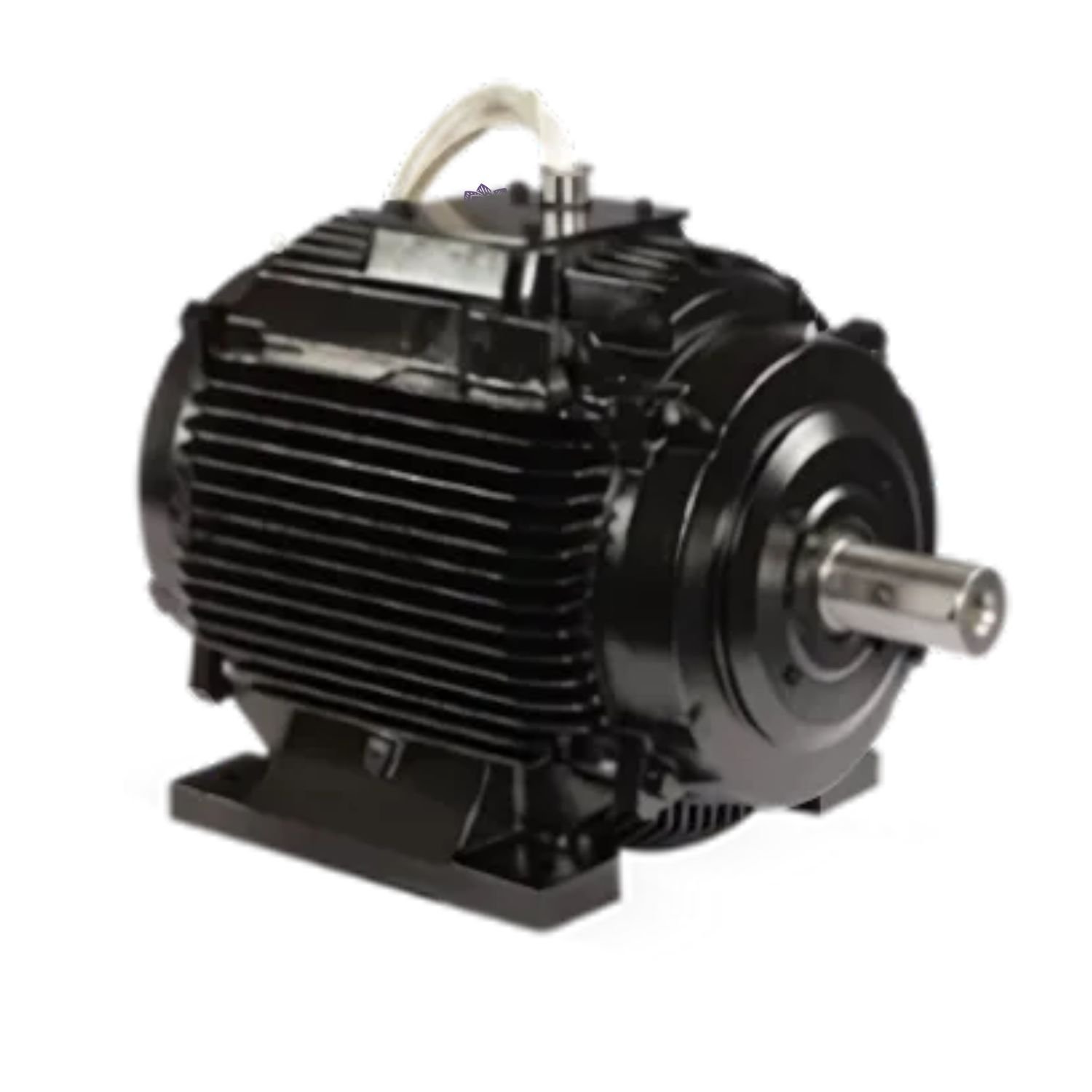

Smoke Extraction Motor
Smoke Extraction Motors are specially designed to operate reliably in extreme heat conditions during fire emergencies. These motors ensure the efficient extraction of smoke, enhancing ventilation in tunnels, parking garages, commercial buildings, and other fire-prone environments. Engineered for high-temperature resilience, they play a crucial role in fire safety systems.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Ratings/ Power | 0.37kW to 700kW | |
| voltage | 240V, 380V, 400V, 415V, 690V, Dual Voltage, Triple Voltage | |
| Polarity | 2,4,6,8,10,12,14, Dual speed | |
| Frequency | 50Hz, 60Hz | |
| Efficiency | IE2, IE3, IE4, IE5 | |
| Type | Squirrel Cage, Slip Ring motor, Smart Motors, IoT motors | |
| Enclosure | TEFC , SPDP | |
| IP Protection | IP23, IP55, IP56, IP65, IP66 | |
| Insulation Class | Class F, H | |
| Mounting | Horizontal (B3, B5, B14, B7, B8, B35, B34) Vertical (V1, V5, V6, V18, V19) | |
| Area Classification | Safe Area, Flame Proof (Exd, Exde), Increased Safety (Exeb), Pressurised (Exp), Dust Proof | |
| Hazardous zones | Hazardous Gas Zone-1, Zone-2,Category-2, Category-3, Ex II 2G, , EX II 3G, | Hazardous Dust Zone21, Zone-22, Ex II 2D, Ex II 3D |
| Hazardous Groups | IIA, IIB, IIC | IIIA, IIIB, IIIC |
| Certifications | BIS, ISI, PESO, CCOE, NEMA, IECEx, ATEX, UL, FM | |
| Starting Method | DOL, VFD, Star Delta, Soft Starter, Star Delta | |
| Application | Roller table motors, Textile motors, Crusher motors, High Torque motors, Aluminium body motors, Cast Iron motors, Smoke Extraction motors, HVAC motors, Railway motors, Crane duty motor, Slipring Crane Duty Motor, Brake Motor, Vibro motor | |
| Duty | S1, S2,S3,S4,S5,S6 | |
| Standards | IEC/ EN60034, IS12615, NEMA, IEC60079 |
