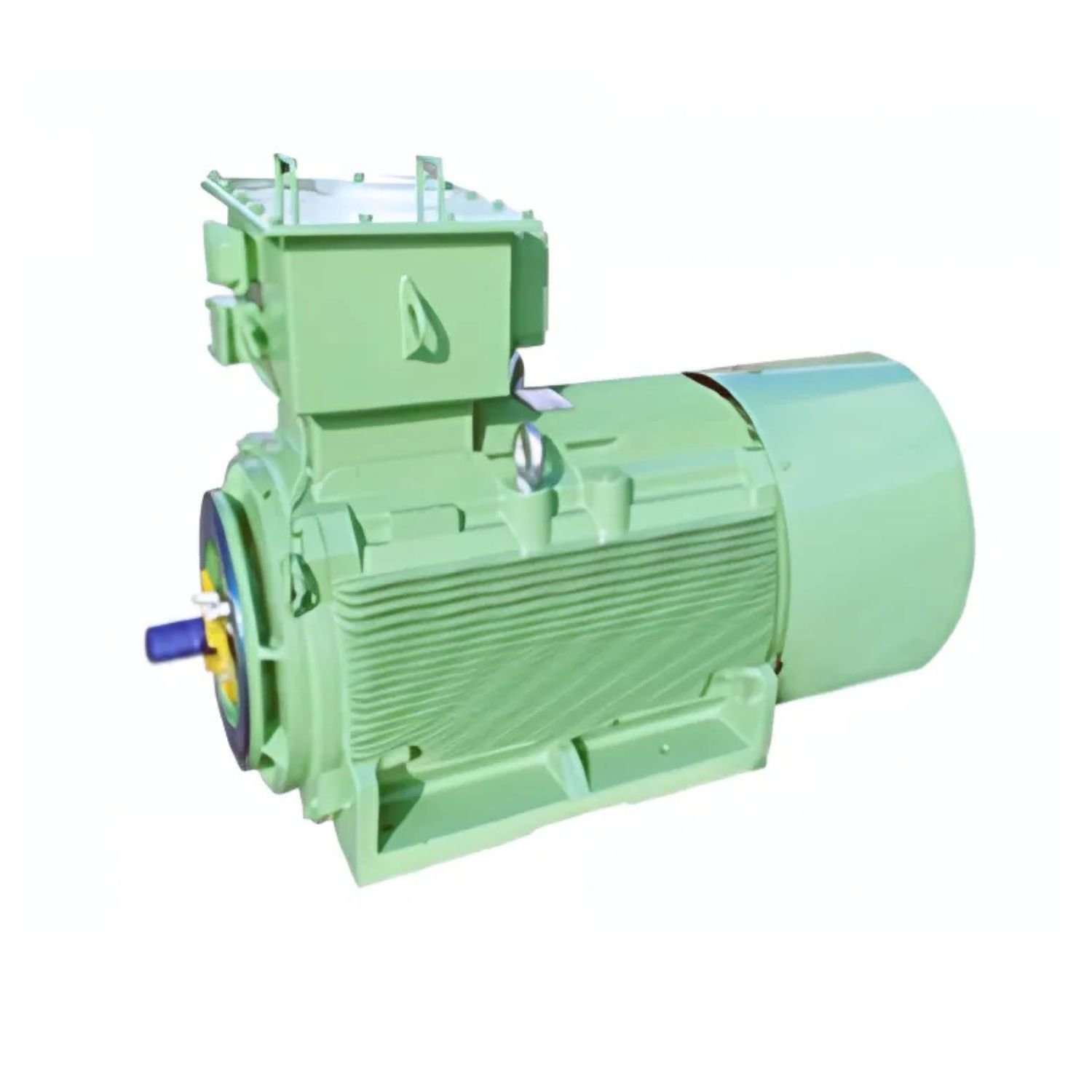

Slip Ring Motor
Slip Ring Motors are specialized wound rotor induction motors designed for applications requiring high starting torque and controlled acceleration. Unlike standard induction motors, these motors feature external resistance via slip rings and brushes, enabling precise speed control and smooth operation under heavy loads.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Ratings/ Power | 0.37kW to 700kW | |
| voltage | 240V, 380V, 400V, 415V, 690V, Dual Voltage, Triple Voltage | |
| Polarity | 2,4,6,8,10,12,14, Dual speed | |
| Frequency | 50Hz, 60Hz | |
| Efficiency | IE2, IE3, IE4, IE5 | |
| Type | Squirrel Cage, Slip Ring motor, Smart Motors, IoT motors | |
| Enclosure | TEFC , SPDP | |
| IP Protection | IP23, IP55, IP56, IP65, IP66 | |
| Insulation Class | Class F, H | |
| Mounting | Horizontal (B3, B5, B14, B7, B8, B35, B34) Vertical (V1, V5, V6, V18, V19) | |
| Area Classification | Safe Area, Flame Proof (Exd, Exde), Increased Safety (Exeb), Pressurised (Exp), Dust Proof | |
| Hazardous zones | Hazardous Gas Zone-1, Zone-2,Category-2, Category-3, Ex II 2G, , EX II 3G, | Hazardous Dust Zone21, Zone-22, Ex II 2D, Ex II 3D |
| Hazardous Groups | IIA, IIB, IIC | IIIA, IIIB, IIIC |
| Certifications | BIS, ISI, PESO, CCOE, NEMA, IECEx, ATEX, UL, FM | |
| Starting Method | DOL, VFD, Star Delta, Soft Starter, Star Delta | |
| Application | Roller table motors, Textile motors, Crusher motors, High Torque motors, Aluminium body motors, Cast Iron motors, Smoke Extraction motors, HVAC motors, Railway motors, Crane duty motor, Slipring Crane Duty Motor, Brake Motor, Vibro motor | |
| Duty | S1, S2,S3,S4,S5,S6 | |
| Standards | IEC/ EN60034, IS12615, NEMA, IEC60079 |
