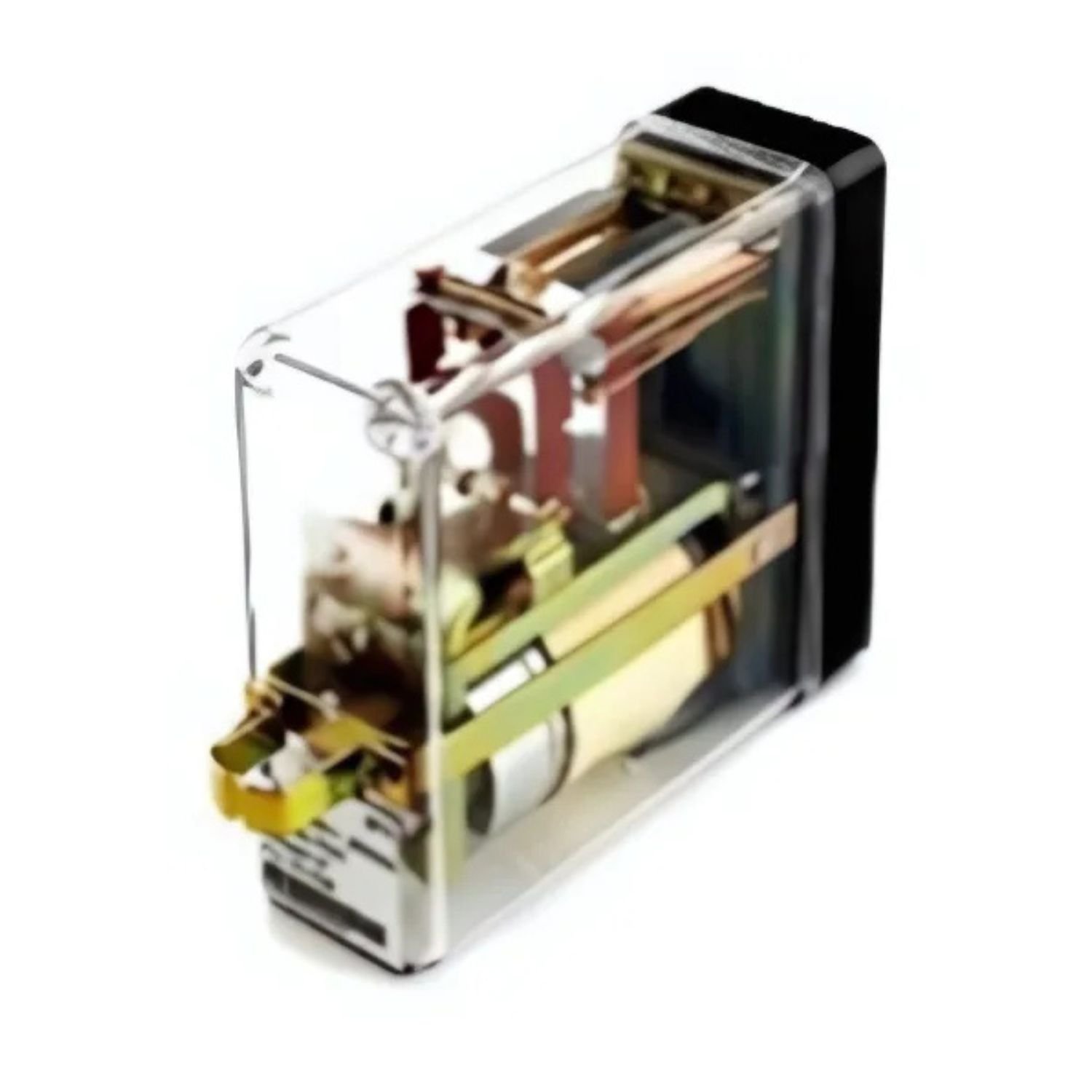

Signalling Relay
Signalling Relays are specialized electromagnetic devices used in railway signaling systems to control track circuits, signals, and interlocking mechanisms. These relays are designed for high reliability, ensuring safe and precise train movement in complex rail networks.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Type | Metal to Carbon Plug in type Q Series Relay |
| Coil Voltage | 12V to 110V DC |
| Contact Configuration | SPDT (Single Pole Double Throw), DPDT (Double Pole Double Throw), or multiple contact options |
| Operating Temperature | (-40°C to +70°C) |
| Mounting Options | DIN rail, plug-in, or panel-mounted |
| Neutral Line Relay | QN1, QNA1, QS3, QNN1, QNNA1 |
| Biased Relay | QBA1, QBBA1, QBCA1 |
| Track Relay | QT2, QTA1, QTA2 |
| Lamp Proving Relay | QECX61, QECX51, QECX52, QECX53, QUCX1 |
| Latch Relay | QL1 |
| Specification | BRS & IRS |
