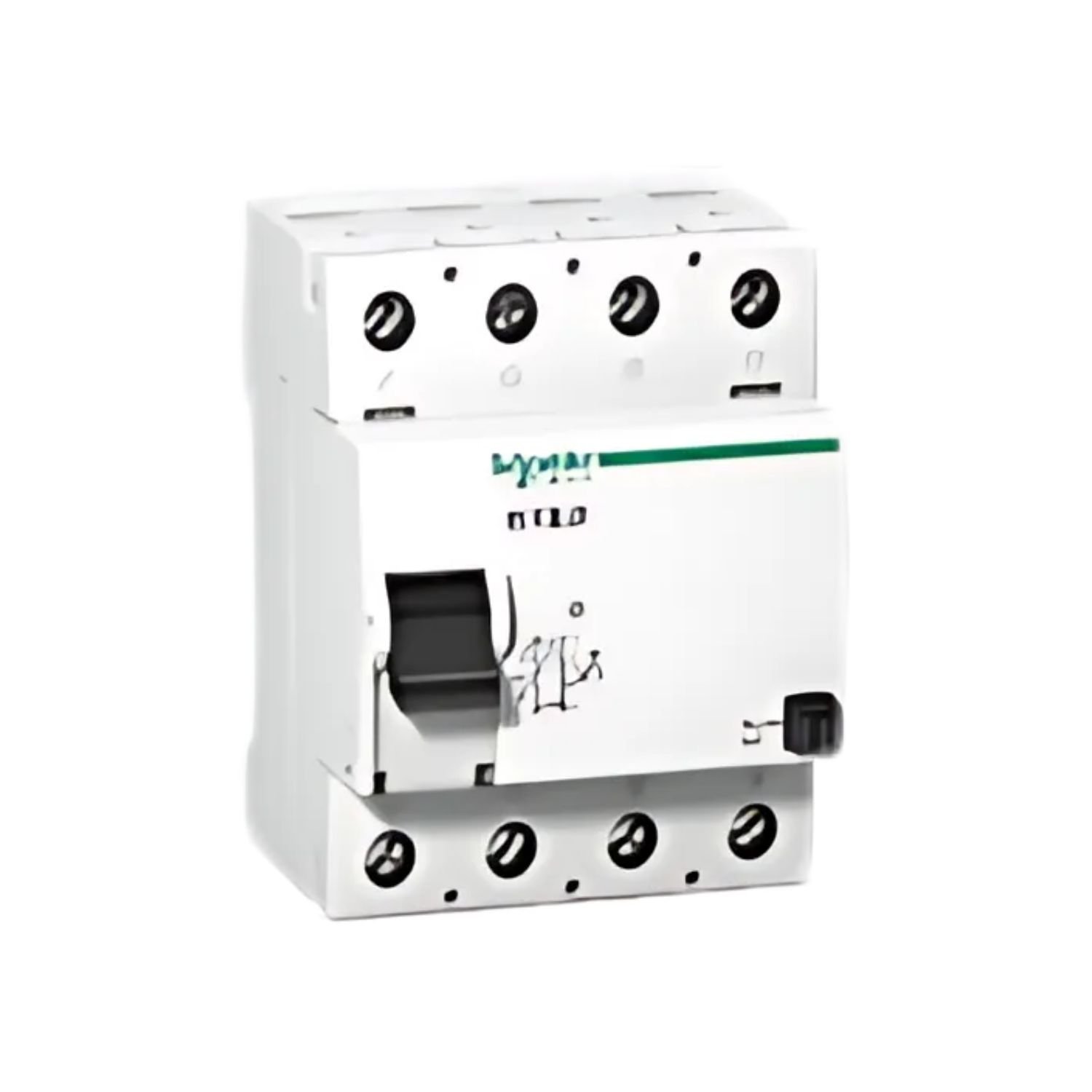

RCCB
An RCCB is a safety device designed to protect people from electrical shocks by detecting leakage currents. It automatically disconnects the power supply when it senses earth leakage faults, ensuring enhanced safety.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Feature | Details |
|---|---|
| Current Rating | Available from 16A to 125A |
| Sensitivity (Trip Current) | Typically rated at 10mA, 30mA, 100mA, or 300mA |
| Voltage Rating | 230V (Single-phase) or 415V (Three-phase) |
| Number of Poles | Available in 2P (Single-phase) and 4P (Three-phase) |
| Tripping Time | <30ms for enhanced safety |
| Operating Temperature | -5°C to +55°C |
| Compliance Standards | Conforms to IEC 61008-1, IS 12640-1, and EN 61008-1 |
