MPCB

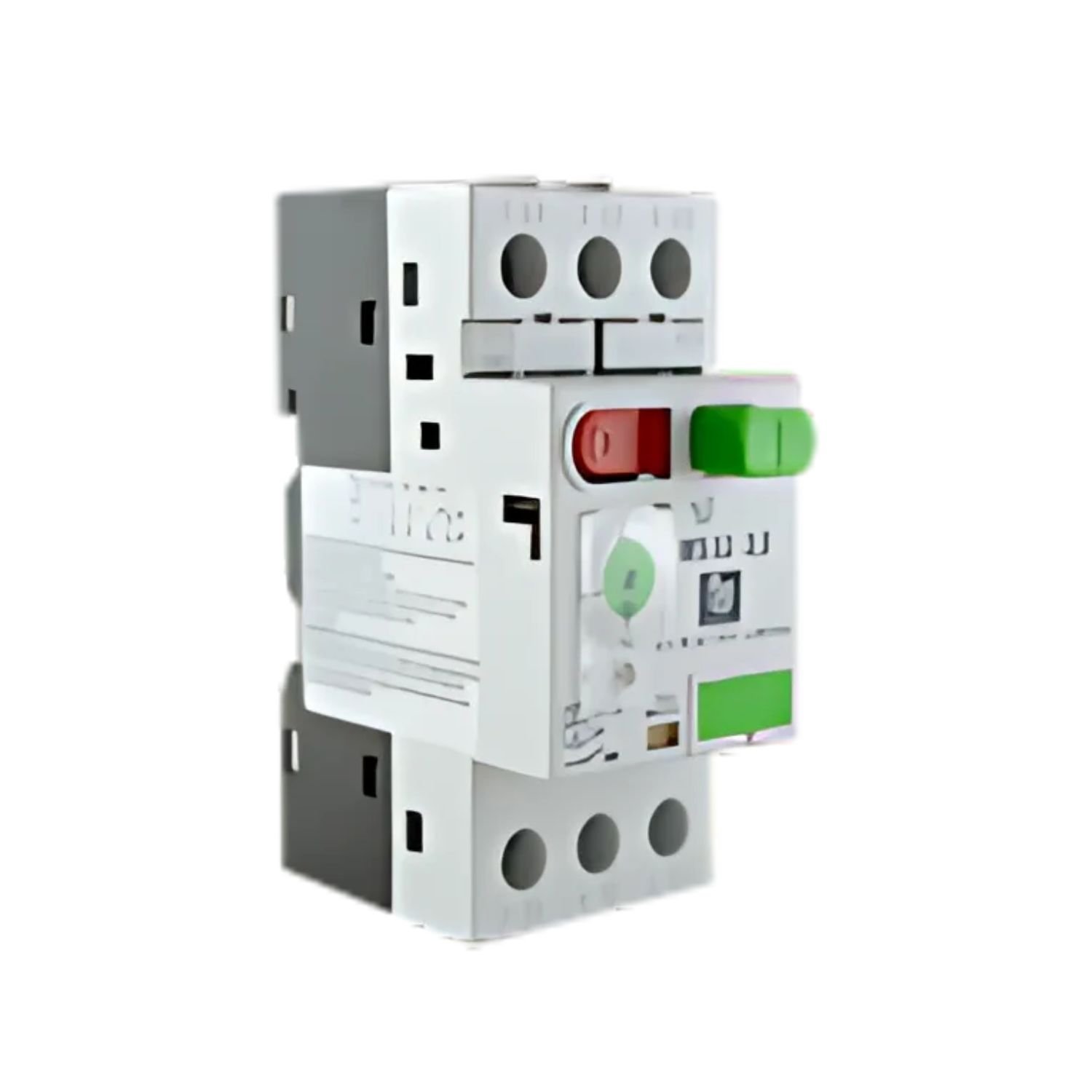

A Motor Protection Circuit Breaker (MPCB) is a specialized type of circuit breaker designed to provide integrated protection for motors against electrical faults such as overload, short circuit, and phase imbalance. MPCBs are widely used in motor control circuits for enhanced safety and reliability.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Feature | Details |
|---|---|
| Current Rating | Typically ranges from 0.1A to 100A |
| Voltage Rating | Up to 690V AC |
| Breaking Capacity | Up to 100kA depending on model |
| Trip Class | Class 10, Class 20, Class 30 for motor protection |
| Thermal Protection | Provides overload protection via adjustable thermal settings |
| Magnetic Protection | Protects against short circuits with fast response |
| Phase Failure Protection | Ensures motor safety during phase loss or imbalance |
| Mounting Type | DIN Rail, Panel Mount, or Direct Motor Mounting |
| Reset Mode | Manual or Automatic Reset options |
| Compliance Standards | Conforms to IEC 60947-4-1, IS/IEC 60947 |
