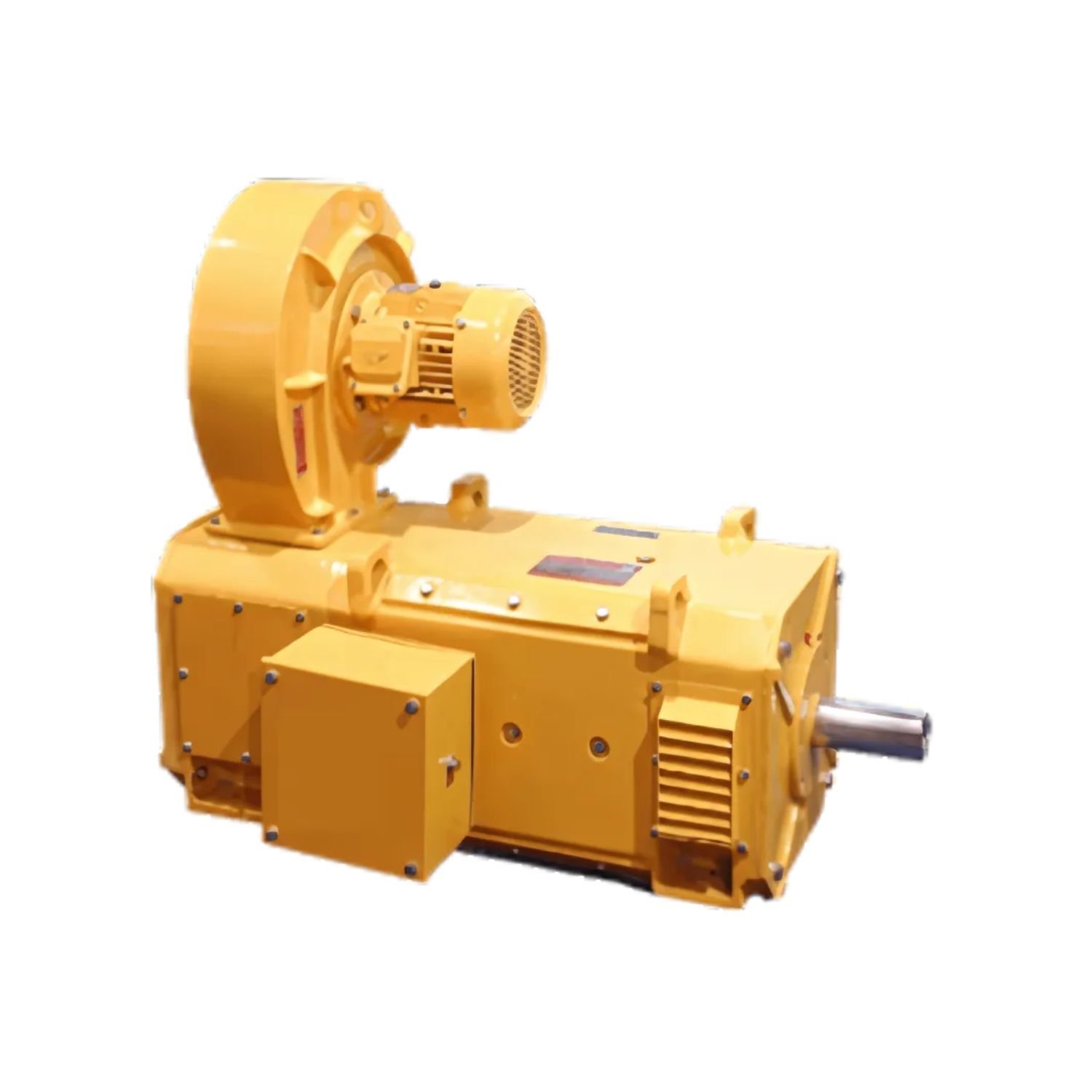

Laminated Yoke Motor
Laminated Yoke Motors are designed with a core structure made from thin, stacked laminations of electrical steel. This design significantly reduces eddy current losses, improving motor efficiency and performance. Laminated Yoke Motors are widely used in industrial applications requiring precise control, high efficiency, and reduced heat generation.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Rating | 2.2kW to 1500 kW |
| Base RPM | As per customer requirement |
| Field Weakening RPM | As per customer requirement |
| Overload Duty | 160% for 15 sec (Calss I), 125% for 2Hrs (Calss IV) , 150% for 2Hrs (Class V) |
| Mounting | Horizontal (B3), Vertical (V1, V3) |
| Armature voltage | 440 V dc, 470V dc |
| Field Voltage | 220V Dc to 500V dc |
| Excitation Type | Shunt, Series, Stablized Shunt, Compound |
| Degree of Protection | IP23, IP55 |
| Insulation Class | Class F, H |
| Type | Laminated Yoke, Solid Yoke, Mill Duty |
