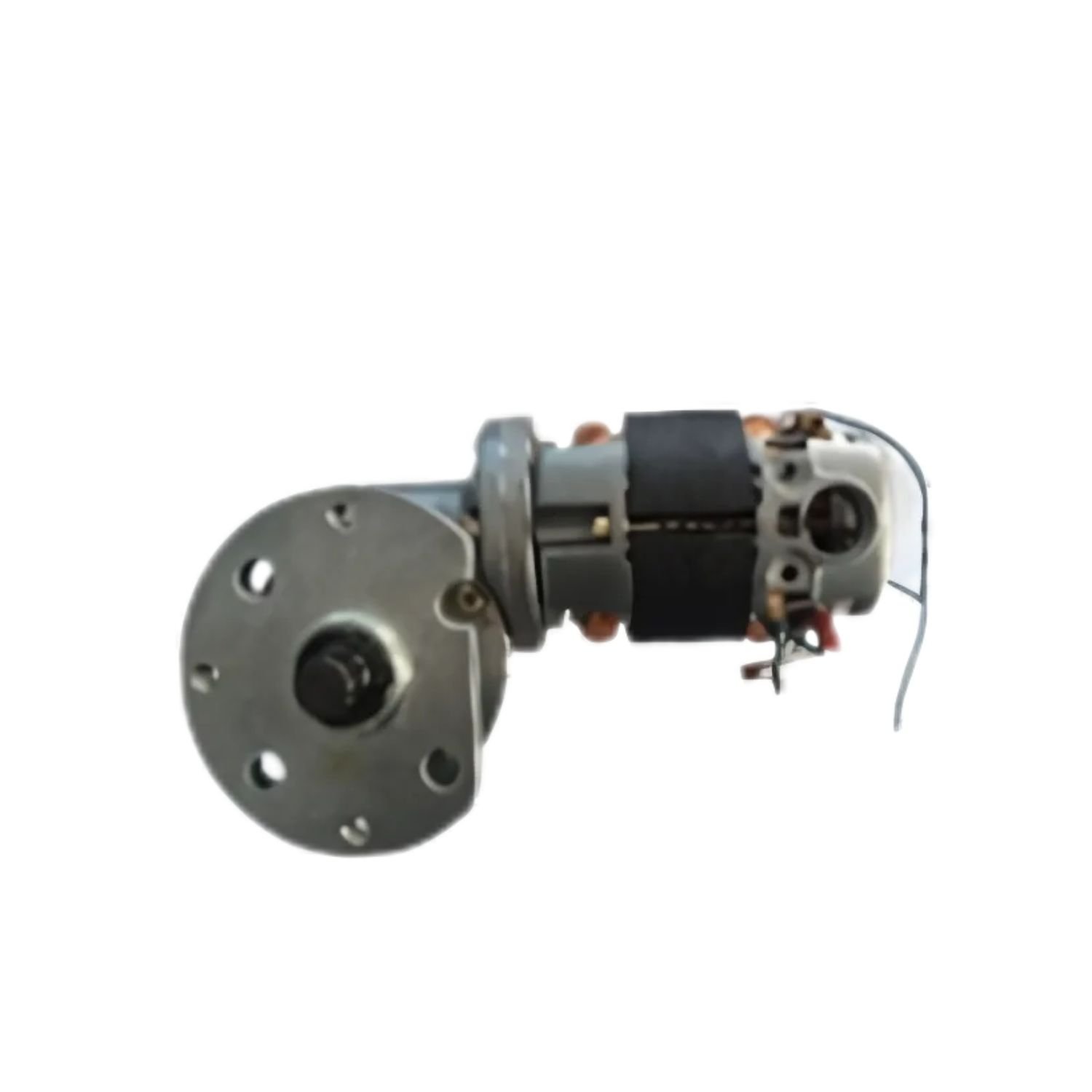

VCB Charging Motor
A Charging Motor is an essential component designed to provide mechanical energy for charging the spring mechanism in circuit breakers such as VCBs (Vacuum Circuit Breakers) and ACBs (Air Circuit Breakers). It ensures reliable and consistent operation of the breaker by efficiently storing energy for rapid closing and tripping actions. These motors are built for durability and performance, often featuring compact designs for easy integration within electrical panels and switchgear systems.
✓ Certified Quality: Tested in compliance with IS/IEC standards
✓ Fast Delivery: Priority dispatch for shutdown & emergency projects
✓ Warranty: Full OEM manufacturer warranty & technical assistance
Technical Specifications & Operating Parameters
| Parameter | Details |
|---|---|
| Type | Electric Charging Motor |
| Voltage Rating | 24V, 48V, 110V, 220V AC/DC (as per requirement) |
| Power Rating | Typically ranges from 50W to 500W |
| Speed (RPM) | 1500 RPM / 3000 RPM (varies by application) |
| Insulation Class | Class F or Class H for heat resistance |
| Mounting Type | Flange / Foot-mounted for easy installation |
| Duty Cycle | Continuous (S1) / Intermittent (S2-S4) |
| Protection Class | IP54 / IP55 / IP65 (application-specific) |
| Applications | Circuit Breakers (VCB/ACB), Switchgear, and Electrical Panels |
